| 제품명: | SFP 광 트랜시버 | 부품 번호: | 100GBASE-LR4 |
|---|---|---|---|
| 지불: | TT/페이파이 | 선적: | DHL/페덱스 |
| 상태: | 새로운 | 보증: | 1년 |
| 리드타임: | 2~3 일 | 핵심 병동: | 100GBASE-LR4 |

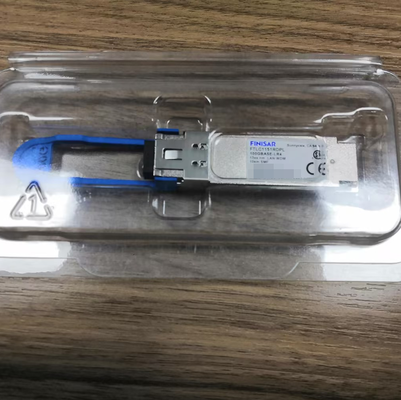

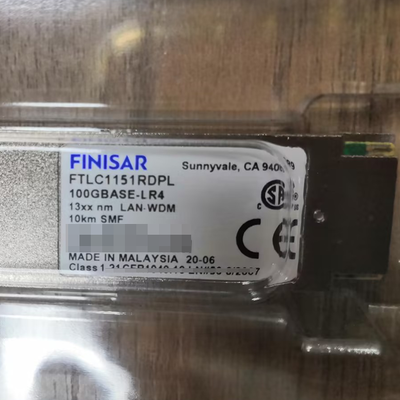

The 100GBASE-LR4 QSFP28 is a high-performance, hot-pluggable optical transceiver designed for 100 Gigabit Ethernet links up to 10 km over standard single-mode fiber (G.652). It integrates four 25Gbps LAN-WDM channels (1295–1310 nm) to deliver 103.125 Gb/s total bandwidth via duplex LC connectors.
| Parameter | Value |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 103.125 Gb/s (4×25.78G) |
| Reach | 10 km (SMF) |
| Wavelength | 1295–1310 nm (4 LAN-WDM lanes) |

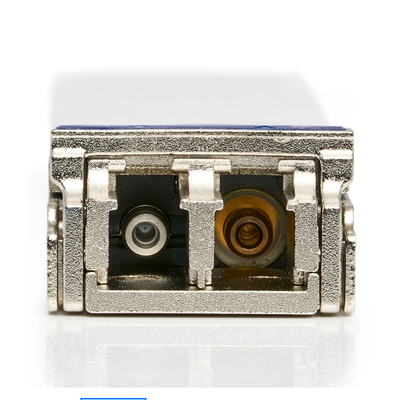

| Connector | Duplex LC |
| Fiber Type | Single-Mode Fiber (G.652) |
| Tx Power | -4.3 ~ +4.5 dBm/lane |
| Rx Sensitivity | -8.6 dBm (OMA, max) |
| Power Consumption | ≤ 3.5 W |
| Temp Range | 0°C ~ 70°C (Commercial) |
| Standard | IEEE 802.3ba, QSFP28 MSA |
| Parameter | Details |
|---|---|
| Standard Compliance | IEEE 802.3ba, QSFP28 MSA, RoHS |
| Total Bandwidth | 103.125 Gb/s |
| Channel Rate | 4 × 25.78125 Gb/s |
| Wavelength Range | 1295 nm ~ 1310 nm LAN-WDM |
| Transmitter Type | EML Laser |
| Receiver Type | PIN Photodetector |
| Typical Tx Output Power | -4.3 ~ +4.5 dBm |
| Receiver Sensitivity | ≤ -8.6 dBm |
| Maximum Rx Overload | +4.5 dBm |
| Power Supply | 3.3 V DC |
| Power Consumption | ≤ 3.5 W |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Digital Monitoring | DDM / DOM Support |
| Hot-Plug Function | Supported |
| Application | Data Center, Enterprise Backbone, DCI |
