제품 상세 정보:
|
| 제품명: | 스위치 패브릭 유닛 M(X1) | 부품 번호: | MIC-1CLTE4-CN |
|---|---|---|---|
| 지불: | TT | 선적: | DHL |
| 상태: | 새로운 | 리드타임: | 2-3 일 |
| 보증: | 1년 | 키워드: | MIC-1CLTE4-CN |

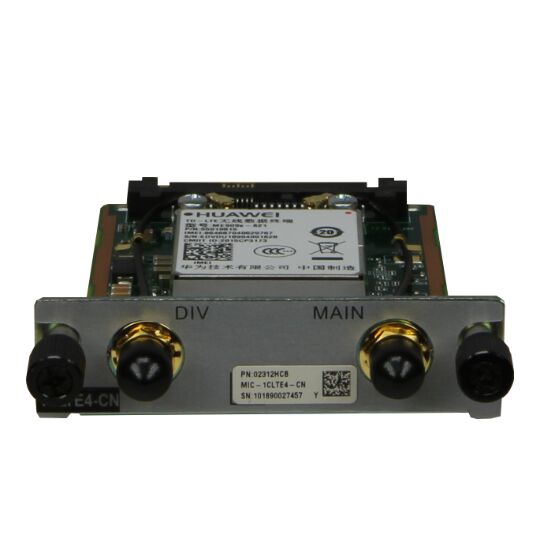

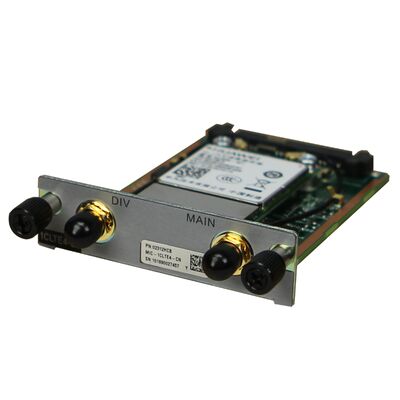

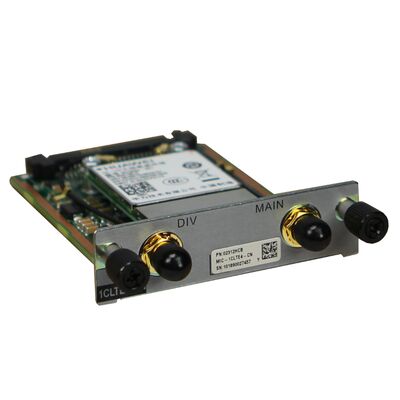

The Huawei MIC-1CLTE4-CN is a high-performance 4G LTE wireless interface module designed for the NetEngine AR600 series enterprise routers. It provides enterprises with a high-speed, reliable 4G wireless WAN access solution, serving as either a primary network link or a backup for wired connections.
| Item | Specification |
|---|---|
| Model | MIC-1CLTE4-CN |
| Type | 4G LTE WAN Interface Card |
| Supported Networks | LTE FDD/TDD, WCDMA, GSM |
| Max Data Rate | DL: 150Mbps, UL: 50Mbps |
| Interface | 2 x SMA (MAIN/DIV) |
| Compatible With | Huawei AR600 Series Routers |
| Parameter | Details |
|---|---|
| Product Model | MIC-1CLTE4-CN |
| Part Number | 02312HCB |
| Card Type | MIC (Mezzanine Interface Card) |
| Wireless Standard | 4G LTE Category 4 (Cat.4) |
| Supported LTE Bands | FDD: Band 1/3/8; TDD: Band 38/39/40/41 |
| Supported 3G Bands | WCDMA: Band 1/5/8/9 |
| Supported 2G Bands | GSM: 900/1800 MHz |
| Max Data Speed | - LTE FDD: Downlink 150 Mbps, Uplink 50 Mbps
|
| Antenna Interface | 2 x SMA-K (MAIN & DIV), 1T2R |
| Dimensions | 18.7mm x 67.86mm x 87.55mm |
| Weight | 0.25 kg (0.55 lb) |
| Power Consumption | Typical: 2.9W; Max: 3.6W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Hot Swap | Not Supported |
