제품 상세 정보:
|
| 제품명: | 액세스 포인트 | 부품 번호: | AirEngine5773-23H |
|---|---|---|---|
| 지불: | 티 | 선적: | DHL |
| 상태: | 새로운 | 리드타임: | 2~3일 |
| 보증: | 1년 | 키워드: | AirEngine5773-23H |

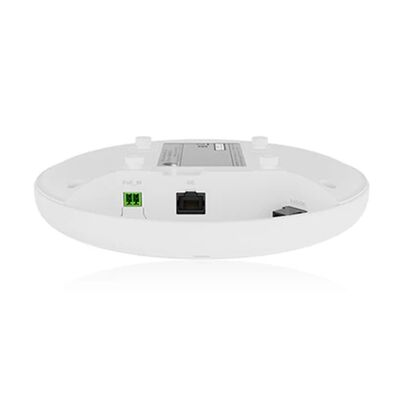

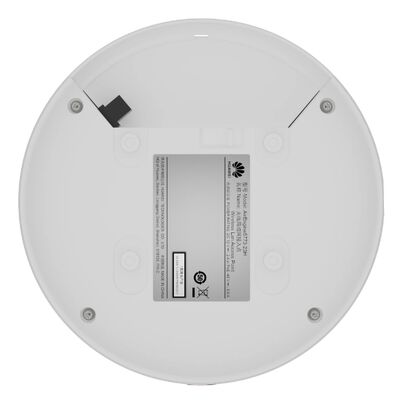

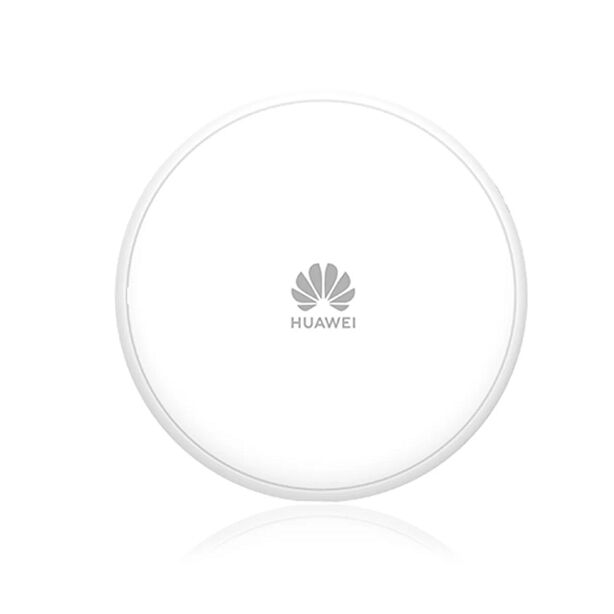

Huawei AirEngine 5773-23H is a next‑generation indoor wireless access point built for Wi-Fi 7 (802.11be). It operates concurrently on 2.4 GHz and 5 GHz bands with 2×2 MIMO on each, delivering a combined rate up to 3.57 Gbps. Equipped with one 2.5GE fiber port and four GE ports, it supports hybrid fiber‑copper cabling for flexible full‑optical network deployment. It features built‑in BLE 5.2 and a USB port for IoT extension, and supports Fit, Fat, and cloud management modes. Compact and wall/ceiling mountable, it is ideal for high‑performance Wi-Fi coverage in hotels, dormitories, offices and other indoor scenarios.
| Item | Specification |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Band | 2.4GHz + 5GHz Dual-Band |
| MIMO | 2x2 & 2x2 |
| Max Rate | 3.57Gbps |
| Ports | 1×2.5GE, 4×GE |
| Power | PoE 802.3at/af |
| Parameter | Details |
|---|---|
| Model | AirEngine 5773-23H |
| Wireless Standard | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Frequency Band | 2.4 GHz & 5 GHz |
| MIMO | 2.4 GHz: 2x2; 5 GHz: 2x2 |
| Max Rate | 2.4 GHz: 689 Mbps; 5 GHz: 2.88 Gbps; Total: 3.57 Gbps |
| Ethernet Ports | 1×2.5GE (fiber), 4×GE (copper) |
| IoT | BLE 5.2, USB for external IoT |
| Antenna | Built-in smart antenna |
| Power Supply | PoE 802.3at/af |
| Dimensions | Φ180 mm × 35 mm |
| Operating Temp | -10°C to +50°C |
| Management | Fit/Fat/Cloud-Managed |
