제품 상세 정보:
|
| 제품명: | 화웨이 네트워크 스위치 | 부품 번호: | S5755-H24UM4Y2CZ |
|---|---|---|---|
| 지불: | TT / 페이팔 | 선적: | DHL |
| 상태: | 새로운 | 리드타임: | 2~3일 |
| 보증: | 1년 | 키워드: | S5755-H24UM4Y2CZ |

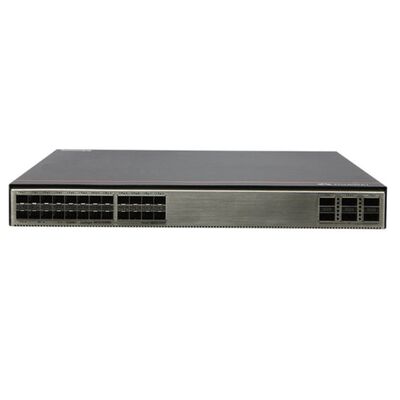

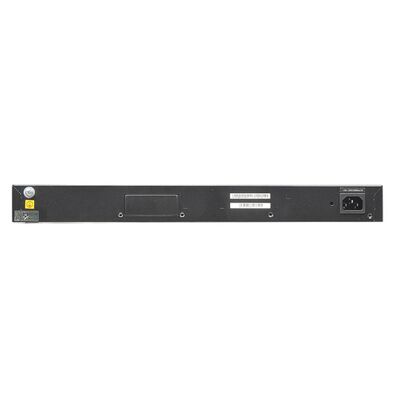

The Huawei CloudEngine S5755-H24UM4Y2CZ is a high-quality multi-gigabit access switch designed for enterprise campus networks. It features 24 flexible downlink ports supporting rates from 10M to 10G, and high-speed uplink ports (4 × 25GE + 2 × 100GE) for seamless expansion. With 90W PoE++ and N+1 power redundancy, it delivers reliable power supply and uninterrupted operation for IP phones, wireless APs, and security cameras.
| Item | Spec |
|---|---|
| Model | CloudEngine S5755-H24UM4Y2CZ |
| Downlink Ports | 24 × 10/100/1000M/2.5/5/10G Base-T |
| Uplink Ports | 4 × 1/10/25GE SFP28, 2 × 40/100GE QSFP28 |
| PoE | 90W PoE++ |
| Switching Capacity | 1.48 Tbps / 2.4 Tbps |
| Packet Forwarding | 490 Mpps |
| Power Supply | N+1 backup |
| Expansion | 1 × slot |
| Model | Description |
| SFP-10G-SR | 10GBASE-SR SFP+ Transceiver |
| QSFP-100G-LR4 | 100GBASE-LR4 QSFP28 Transceiver |
| LS-AC-600W | 600W AC Power Supply |
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S5755-H24UM4Y2CZ |
| Fixed Ports | 24 × 10/100/1000M/2.5G/5G/10G Base-T PoE++ ports
|
| Expansion Slot | 1 × dedicated expansion slot |
| Switching Capacity | 1.48 Tbps (device), 2.4 Tbps (system) |
| Packet Forwarding Rate | 490 Mpps |
| PoE Standard | IEEE 802.3af/at/bt, PoE++ up to 90W per port |
| Layer 3 Features | Static routing, RIP, OSPF, IS-IS, BGP, VXLAN, BGP-EVPN |
| Security Features | MACsec, 802.1X authentication, ACL, CPU protection |
| Power Supply Mode | Hot-swappable modular, supports N+1 redundancy |
| Operating Temperature | -5°C to +50°C |
| Mounting | 19-inch standard rack-mountable |
| Management | SNMP, CLI, Web GUI, NETCONF, YANG |
| Application Scenario | Enterprise campus access & aggregation, high-density PoE deployment |
