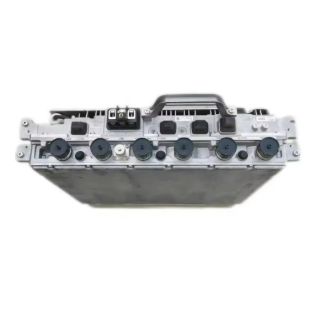

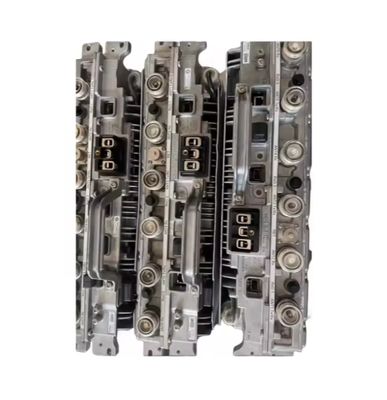

Nokia 475000A (AHPMDB) an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations

Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations
Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations

큰 이미지 :  Nokia 475000A (AHPMDB) an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Nokia
인증: CE
모델 번호: 475000A(AHPMDB)
문서: LONRISE EQUIPMENT Company ...le.pdf
결제 및 배송 조건:
최소 주문 수량: 1 PC
배달 시간: 1-3 일
지불 조건: T/T, Western Union

Nokia 475000A (AHPMDB) an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations

설명
상표: 노키아 상태: 사용된
용법: 기지국 유형: 원격 무선 유니트
보증: 3 개월 리드 타임: 1-3 일
배달 시간: 3-5 일 기원: 중국
강조하다:

Nokia AirScale Tri-Band RRU

,

cellular base station radio unit

,

remote radio unit with warranty

Overview

The Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations, supporting bands 8 (900 MHz), 20 (800 MHz), and 28 (700 MHz). It has an IP65 ingress protection rating, a weight of 31 kg, and supports both OBSAI and CPRI optical interfaces.

Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations 0 Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations 1
Key specifications
  • Product: Nokia AirScale Tri RRH (Radio Remote Unit)
  • Product Code: 475000A
  • Model: AHPMDB
  • Configuration: 2 Transmit / 4 Receive (2T4R) for each band
  • Frequency Bands:
    • Band 8: 880–915 MHz (RX), 925–960 MHz (TX)
    • Band 20: 832–862 MHz (RX), 791–821 MHz (TX)
    • Band 28: 703–733 MHz (RX), 758–788 MHz (TX)
  • Total Output Power: 240W
  • Technology Support: LTE, WCDMA, GSM (for relevant bands)
  • Interfaces:
    • Antenna Ports: 4.3-10 connectors
    • Optical Ports: 2 x OBSAI RP3-01 or 9.8 Gbps CPRI
    • Control Interfaces: AISG 3.0 and RS-485
    • Other Interfaces: MDR26 for 4 external alarms
  • Physical:
    • Dimensions: 560 mm×308 mm×168.5 mm
    • Weight: 31 kg
    • Ingress Protection: IP65
  • Power:
    • Supply Voltage: DC -48V / -57 to -40.5V
    • Typical Power Consumption (Busy Hour): 678W (for 4x60W) or 532W (for 4x30W)
  • Operational Temperature: −40 to +55°C
  • Nokia 475000A (AHPMDB)  an AirScale Tri-Band Radio Remote Unit (RRU) for cellular base stations 2
