제품 상세 정보:
|
| 모델: | QDD-400G-LR4-S | 커넥터: | LC |
|---|---|---|---|
| 형태 필드: | QSFP-DD | 메디아: | SMF |
| 도달하다: | 10km | 속도: | 400G베이스 |
| 수신기 유형: | LR4 | 파장: | 1310nm |
| 상태: | 1년 보증이 포함된 정품 새 제품 | ||
| 강조하다: | 400G QSFP-DD transceiver 10km SMF,400G-LR4 optical transceiver module,QSFP-DD duplex SMF transceiver |
||

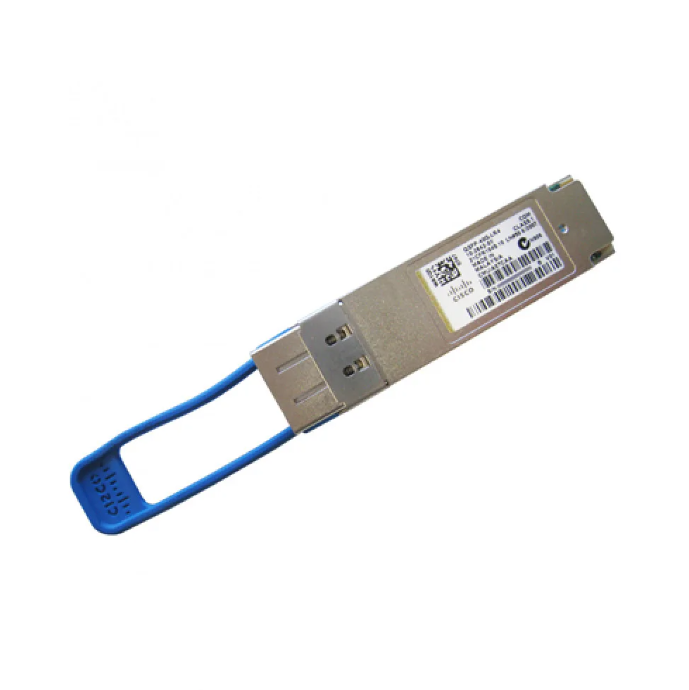

The Cisco QDD-400G-LR4-S Module (Figure 12) supports link lengths of up to 10km SMF with duplex LC connector. It is compliant to IEEE 802.3cu for 400GBASE-LR4-6km requirements but extends the reach to 10km, is compliant to100G Lambda MSA group 400G-LR4 requirements, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. FEC is performed on the host platform.
| Property | Value |
|---|---|
| Model | QDD-400G-LR4-S |
| Connector | LC |
| DOM | DOM |
| Form Type | QSFP-DD |
| Media | SMF |
| Reach | 10km |
| Speed | 400GBase |
| Speed Description | 400-Gigabit |
| Transceiver Type | LR4 |
| Wavelength | 1310nm |
| Environment | 0 to 70°C |
