| 이름: | SFP 10G SR s | 모델: | 10GBASE SR SFP 모듈 엔터프라이즈 클래스 |
|---|---|---|---|
| 유형: | 10GBASE SR 850nm MMF | 베일 래치 색: | 베이지색 |
| 기절: | 1년 | 해운: | DHL & FedEx |
| 제품 유형: | 기준 치수 | 소비전력(W): | 1 |
| 작동 온도 범위: | 와 함께 | 제품명: | 시스코 SFP 모듈 |
| 부품 번호: | SFP-10G-lrm | 상태: | 새로운 |
| 리드타임: | 2~3 일 | 키워드: | SFP-10G-lrm |

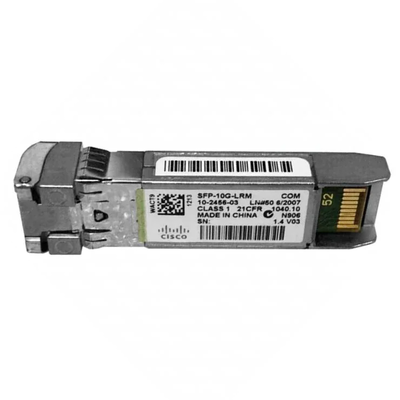

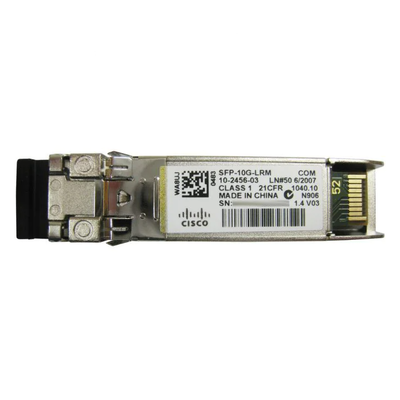

The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade Multimode Fiber (MMF). To make sure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4.
| Brand | Cisco |
| Model | SFP-10G-LRM |
| Wavelength (nm) | SFP+ |
| Cable Type | MMF
SMF |
| Core Size (Microns) |
62.5 50.0 50.0 G.652 |
|
Naming Convention |
Core Size in Microns |
Modal Bandwidth at 850 nm (MHz*km) |
OFL Modal Bandwidth at 1310 nm (MHz*km) |
|
FDDI-grade |
62.5 |
160 |
500 |
|
OM1 |
62.5 |
200 |
500 |
|
OM2 |
50 |
500 |
500 |
|
OM3 |
50 |
1500 |
500 |
SFP-10G-LRM Specifications |
|
| Wavelength (nm) | 1310 |
| Cable Type |
MMF SMF |
| Core Size (μm) |
62.5 50.0 50.0 G.652 |
| Modal Bandwidth (MHz* Km) |
500 400 500 |
| Cable Distance |
220m 100m 220m 300m |
| Type |
10GBASE-LRM 1310nm MMF and SMF |
| Transmit Power (dBm) |
Maximum: 0.5 Minimum: -6.5 |
| Receive Power (dBm) |
Maximum: 0.5 Minimum:-8.4 (in average) and -6.4 (in OMA)*** |
| Transmit and Receive Wavelength Range (nm) |
Transmit and Receive Wavelength (nm) |
| Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
| Bail Latch Color | Orange |
| Operating temperature range |
Commercial temperature range (COM): 0 to 70°C (32 to 158°F) Extended temperature range (EXT): -5°C to 85°C (23 to 185°F) Industrial temperature range (IND): -40 to 85°C (-40 to 185°F) Storage temperature range: -40 to 85°C (-40 to 185°F) |
| Power Consumption (W) |
1 |
| Temperature Range | COM |
| DOM | Yes |
| Warranty |
Standard warranty: 5 years Expedited replacement available via a Cisco SMARTnet® Service support contract |
