제품 상세 정보:
|
| 제품명: | 스위치 | 부품 번호: | LS-5130S-10P-HPWR-EI-H1 |
|---|---|---|---|
| 지불: | TT | 선적: | DHL |
| 상태: | 새로운 | 리드타임: | 2-3 일 |
| 보증: | 1년 | 키워드: | LS-5130S-10P-HPWR-EI-H1 |
| 강조하다: | 8-port PoE+ gigabit switch,H3C LS-5130S switch with SFP uplinks,125W PoE budget Ethernet switch |
||

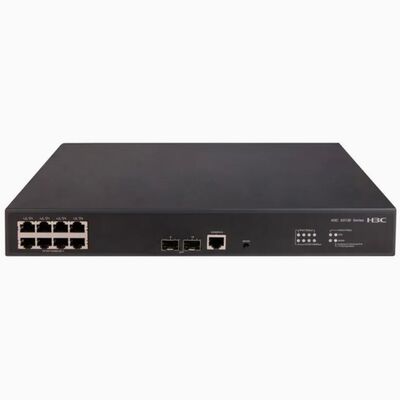

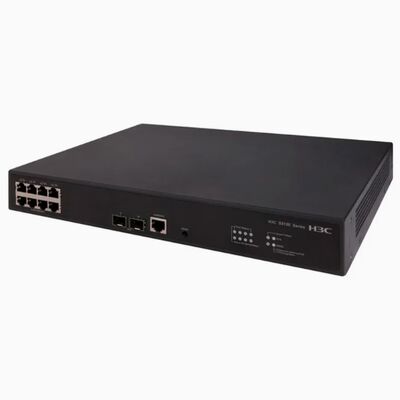

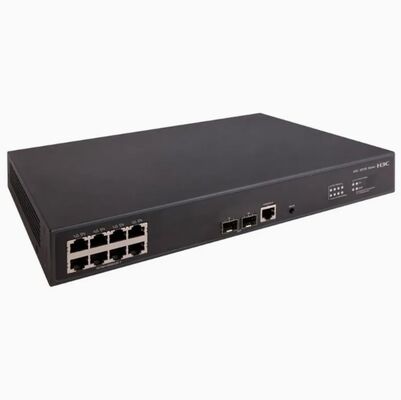

The H3C LS-5130S-10P-HPWR-EI-H1 is a high-performance, Layer 2 managed gigabit access switch designed for enterprise and SMB network deployments. It features 8×10/100/1000BASE-T PoE+ ports with a 125W power budget, ideal for powering IP phones, wireless APs, and IP cameras. Two 1G SFP uplink ports provide flexible fiber connectivity for aggregation. With robust switching capacity (336Gbps) and forwarding performance (27Mpps), it ensures smooth data transmission. The switch supports advanced features including VLAN, QoS, ACL, IRF stacking, and comprehensive management via CLI, web, and SNMPH3C. Its compact form factor and rack-mountable design make it suitable for space-constrained environments, delivering reliable, secure, and easy-to-manage network access.
| Item | Details |
|---|---|
| Model | LS-5130S-10P-HPWR-EI-H1 |
| Brand | H3C |
| Port Configuration | 8×10/100/1000BASE-T PoE+, 2×1G SFP Uplink |
| PoE Budget | 125W (AC) |
| Switching Capacity | 336Gbps |
| Forwarding Rate | 27Mpps |
| Management | L2 Managed, CLI, SNMP, Web UIH3C |
| Power | AC 100–240V, 50/60Hz |
| Dimensions | 330×230×43.6mm |
| Parameter | Specification |
|---|---|
| General | |
| Product Model | LS-5130S-10P-HPWR-EI-H1 |
| Product Series | H3C S5130S-EI-H1 |
| Switch Type | Layer 2 Managed Gigabit Ethernet Switch |
| Port Configuration | |
| Copper Ports | 8×10/100/1000BASE-T Auto-sensing (PoE+) |
| Fiber Ports | 2×1000BASE-X SFP Slots |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 125W (AC Input) |
| Performance | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 27Mpps |
| MAC Address Table | 16K Entries |
| Features | |
| VLAN | 802.1Q, Port-based VLAN, QinQ, Voice VLAN |
| QoS | Priority Queuing, Traffic Shaping, ACL |
| Link Aggregation | LACP (802.3ad), Static Trunk |
| Security | 802.1X, Port Security, Storm Control |
| Management | CLI, Web GUI, SNMP v1/v2c/v3, RMONH3C |
| Stacking | IRF (Intelligent Resilient Framework)H3C |
| Power & Environment | |
| Input Voltage | AC 100–240V, 50/60Hz |
| Max Power Consumption | 44W |
| Operating Temp | 0°C to 45°C |
| Humidity | 5%–95% (Non-condensing) |
| Physical | |
| Dimensions (W×D×H) | 330 × 230 × 43.6 mm |
| Weight | ≤3 kg |
| Mounting | Desktop/Rack-mountable |
