제품 상세 정보:
|
| 상태: | 원래 새로운 | 모델: | WSP-Q40GLR4L |
|---|---|---|---|
| 커넥터: | 이중 LC | 최대 거리: | 2km |
| 케이블 유형: | SMF | 케이블 거리: | 2km |
| 상표: | 시스코 | 핵심 사이즈 (마이크론): | 50.0 |

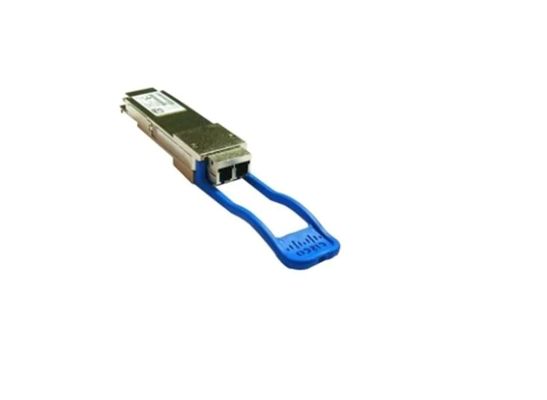

The Cisco WSP-Q40GLR4L is a high-performance 40GBASE-LR4 QSFP transceiver module designed for single-mode fiber (SMF) applications. Featuring a duplex LC connector, it supports data transmission over distances of up to 2 kilometers. This transceiver is ideal for high-speed network infrastructures that require reliable and efficient connectivity solutions.
WSP-Q40GLR4L Overview
Quick Spec
Brand
Cisco
Model
WSP-Q40GLR4L
Connector
Duplex LC
Maximum Distance
2km
Form Factor
QSFP+
Product Features
Product Applications
Supported Options
Accessory
Model
QSFP+ to 4xSFP+ Breakout Cable
QSA-Module
QSFP+ DAC Cables
Cisco QSFP-H40G-CU1M
QSFP+ Fiber Optic Cables
Cisco QSFP-4X10G-LR
Compare to Similar Items
Model
Differences
Cisco QSFP-40GE-LR4
Supports longer distances up to 10km
Cisco QSFP-40G-SR-BD
Uses BiDi technology for multimode fiber
Cisco QSFP-40G-SR4
For short range up to 150m on OM3 MMF
WSP-Q40GLR4L Specifications |
|
| Wavelength (nm) | 1310 |
| Cable type | SMF |
| Core size (Microns) | G.652 |
| Modal bandwidth (MHz km) | - |
| Cable distance | 2km |
| Power consumption (W) | 3.5 |
| Pull tab color | Yellow |
| Type | 40GBASE-LR4-Lite, 1310 nm, SMF |
| Transmit power (dBm) | Maximum: 2.3, per lane |
| Minimum: -10, per lane | |
| Receive power (dBm) | Maximum: 2.3, per lane |
| Minimum: -13.7, per lane | |
| Transmit and receive wavelength (nm) | Four lanes: 1271, 1291, 1311, 1331 |
| Environmental conditions |
Operating temperature range: ● Commercial temperature range: 0 to 70°C (32 to 158°F). Exceptions are ◦ QSFP BiDi (QSFP-40G-SR-BD): +10 to 70°C (50 to 158°F) ◦ QSFP BiDi Monitor (QSFP-40G-BD-RX): +10 to 70°C (50 to 158°F) ◦ QSFP LR4 Lite (WSP-Q40GLR4L): +10 to 60°C (50 to 140°F) ● Storage temperature range: -40 to 85°C (-40 to 185°F) |
