제품 상세 정보:
|
| 상표: | ZTE | 모델: | R8882A S1800 |
|---|---|---|---|
| 상태: | 사용된 | 보증: | 3 개월 |
| 리드 타임: | 1-3 일 | 배달 시간: | 3-5 일 |
| 기원: | 중국 | 유형: | 원격 무선 유니트 |
Overview

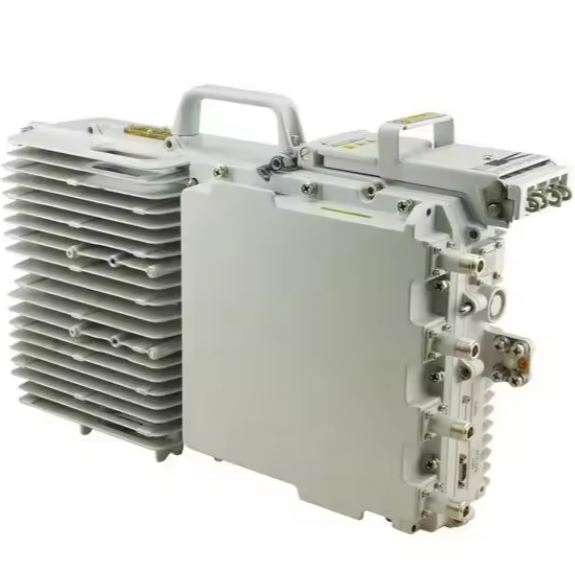

ZTE ZXSDR R8882A S1800 Micro Radio Remote Unit.
| Parameter | Specification / Notes |
|---|---|
| Type / Role | Outdoor Remote Radio Unit (RRU) / Macro Radio Remote Unit |
| Radio Modes Supported | GSM, UMTS, CDMA, LTE — single, dual or multi-mode (software upgradeable) |
| Transmit / Receive Chains | 2 transmitters (2T) / up to 4 receivers (up to 2T4R) |
| Frequency Band (S1800 variant) | For the S1800 model: uplink ~ 1710-1765 MHz, downlink ~ 1805-1860 MHz (when B6B variant) |
| Optical / Interface Ports | • Two optical ports (for many variants) with maximum throughput ~ 3 Gbps • Some “C” variants have three optical ports with maximum 6 Gbps |
| Output Power / PA | • For “2×60 W” class (S1800): two PA branches each capable of ~ 60 W (TOC power) • In LTE mode, typical output: 2×54 W for 2×40 W class, or 2×75 W for 2×60 W class |
| Dimensions & Weight | For 2×60 W version: ~ 480 × 320 × 150 mm (H×W×D) Weight ~ 24 kg (for 2×60 W, 2T4R config) |
| Receiver Sensitivity | • LTE (single antenna): –106 dBm • LTE (dual antenna): –108.6 dBm • UMTS single: –125.8 dBm, dual: –128.5 dBm |
| Power Supply | DC –48 V (range maybe –37 V to –60 V) Typical current rating (e.g. 10 A) for variants like “48 V 10A” |
| Operating Temperature / Environment | –40 °C to +50 °C (or +55 °C in some specs) Protection: IP66 or similar outdoor rating in many vendor listings |
| Mounting / Installation | Wall, pole, L-shape gantry, tower mounting supported |
| Networking / Cascading | Supports star, chain, ring (depending on number of optical ports) topology for cascading between BBU and RRUs |
| Additional Features / Tech | • Digital Pre-Distortion (DPD), Doherty / power amplifier efficiency optimizations • Software-defined radio flexibility, smooth upgrades across modes |
